Orflo

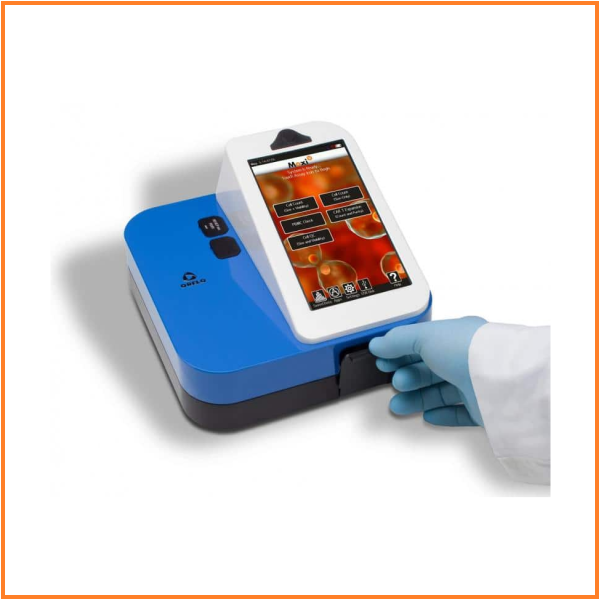

Moxi V

Mini Automated Cell Analyzer The Moxi V provides a combination of volumetric cell sizing (Particle Sizer) with simultaneous fluorescence (Cell Analyzer) to provide the most accurate cell counts, size, and viability in the industry.
Full Specifications
  • ID MXV102
  • Included Accessories USB power cord, US-style USB power adapter, and Type S+ cassette pack
  • AC Power Type 110 VAC
  • Applications Gold Standard Cell Count, Cell Size, and Viability
  • Average Cell Diameter Range 4 – 25 microns Type M|3 – 20 microns Type S
  • Battery Type Rechargeable 3.7 V, 7500 mAh lithium ion
  • Cassette Types Type S+
  • Cell Particle Concentration Range 10,000 – 5,000 cells/mL Type S+
  • Cell Types Tested HEK-293|HeLa|PC12|CD3+T|CHO-K1|Cos-7|HepG2|Hybridoma|Jurkat E6-1|K562|MCF7|Mesenchymal SC |Monocyte | Mouse ESC| NIH 3T3| PBMC (cultured)|Red Blood Cells (RBC)|L5178y| C. albicans (Yeast)| S. cerevisiae Vin 13 (Yeast)|S. cerevisiae X5 (Yeast)|Wine Yeast (natural fermentaion)| S.cerevisiae (Baker’s Yeast | Safale US-05 Yeast|
  • Data Output Formats FCS 3.1, screen shots (.bmp), CSV
  • Data Storage Capacity 4Gb
  • Display Resolution 800 x 480 color touchscreen
  • Excitation Wavelengths 532nm
  • In British Units 8 lbs
  • Intended Use Statement For Research Use Only. Product is not for use in diagnostic procedures
  • Laser Color Green
  • Measurable Dynamic Range 3 – 27 microns Type Type S+; 4 – 35 microns Type MF-M
  • Measurement Time 10 seconds Type S+
  • MPI Cell Health Ratio Yes (Size histogram only)
  • Number of Detection Channels Flow parameters 1 color, 1 size, 1 forward extinction
  • Number of PMTs 1
  • Optical Detection Range 561nm/LP (e.g. PI)
  • Particle Size Detection Method Impedimetric (Coulter Principle)
  • Pre-Programmed Tests Gold Standard Cell Count, Cell Size, and Viability
  • Sample Type Cell Preparations
  • Sample Volume 60 µL
  • Supported Connectivity USB on-the-go
  • Useable Cell Volume 14 – 10,306 fL Type S+; 14 – 22,449 fL Type MF-M
  • Weight 3.6 kg
