Orflo

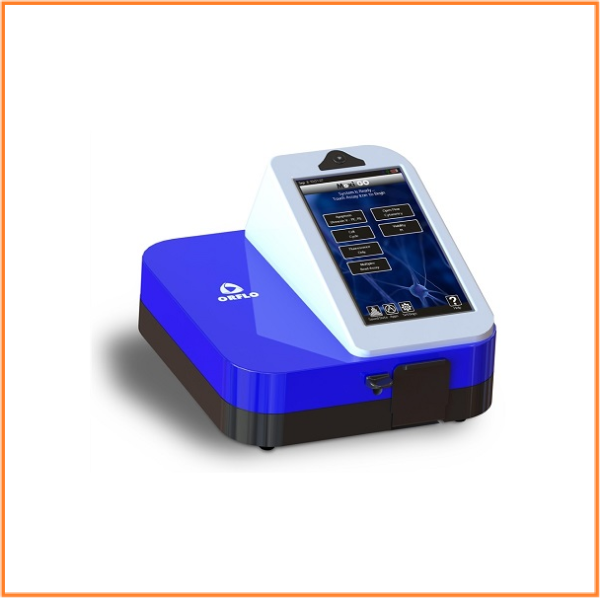

Moxi GO II

Mini Automated Cell Counter Kit Combines the Coulter Principle (for highly-accurate cell counts and exact, volumetric cell sizing) with a 488nm laser and two PMT fluorescence detection channels (for cell health assays, robust CAR-T monitoring, cellular response profiling, and immune profiling).
Full Specifications
  • ID MXG102
  • Included Accessories USB power cord, US-style USB power adapter, and Type S+ cassette pack
  • AC Power Type 110 VAC
  • Applications Mulitplexed Bead ELISA’s|In Cell Westerrns|In Cell Protein Quant|GFP| Gold Standard Cell Count and Viability|Mito Potential|ROS|Phagocytosis
  • Battery Type Rechargeable 3.7 V, 7500 mAh lithium ion
  • Cassette Types Type S+
  • Cell Particle Concentration Range 5,000 – 1,000,000 cells/mL Type S+
  • Cell Types Tested HEK-293|HeLa|PC12|CD3+T|CHO-K1|Cos-7|HepG2|Hybridoma|Jurkat E6-1|K562|MCF7|Mesenchymal SC|Monocyte|Mouse ESC| NIH 3T3| PBMC (cultured)|Red Blood Cells (RBC)|L5178y| C. albicans (Yeast)| S. cerevisiae Vin 13 (Yeast)|S. cerevisiae X5 (Yeast)|Wine Yeast (natural fermentaion)|S.cerevisiae (Baker’s Yeast|Safale US-05 Yeast|
  • Data Output Formats FCS 3.1, screen shots (.bmp), CSV
  • Data Storage Capacity 4Gb
  • Display Resolution 800 x 480 color touchscreen
  • Excitation Wavelengths 488nm
  • In British Units 10 lbs
  • Intended Use Statement For Research Use Only. Product is not for use in diagnostic procedures
  • Laser Color Blue
  • Measurable Dynamic Range 3 – 27 microns Type Type S+; 4 – 35 microns Type MF-M
  • Measurement Time 10 seconds Type S+
  • MPI Cell Health Ratio Yes (Size histogram only)
  • Number of Detection Channels Flow parameters 2 color, 1 size, 1 forward extinction
  • Number of PMTs 2
  • Optical Detection Range 525/45nm (e.g. FITC, GFP) and 561nm/LP (e.g. PE, RFP)
  • Particle Size Detection Method Impedimetric (Coulter Principle)
  • Platform Open platform: 561nm/LP (PI, PE, DS Red, Sytox Orange, 7 AAD, Nile Red, Rhodamine Red, Sun Coast Yellow, PE/Cy5), 525/45nm (FITC, GFP, Alexa Fluor 488nm, Calcein)
  • Pre-Programmed Tests Mulitplexed Bead ELISA’s|In Cell Westerrns|In Cell Protein Quant|RFP|Gold Standard Cell Count and Viability|Mito Potential|ROS|Phagocytosis
  • Resolution Histogram Bins 1000
  • Sample Type Beads|Cell Preparations
  • Sample Volume 60 µL
  • Supported Connectivity USB on-the-go
  • Useable Cell Volume 14 – 10,306 fL Type S+; 14 – 22,449 fL Type MF-M
  • Weight 4.53 kg
