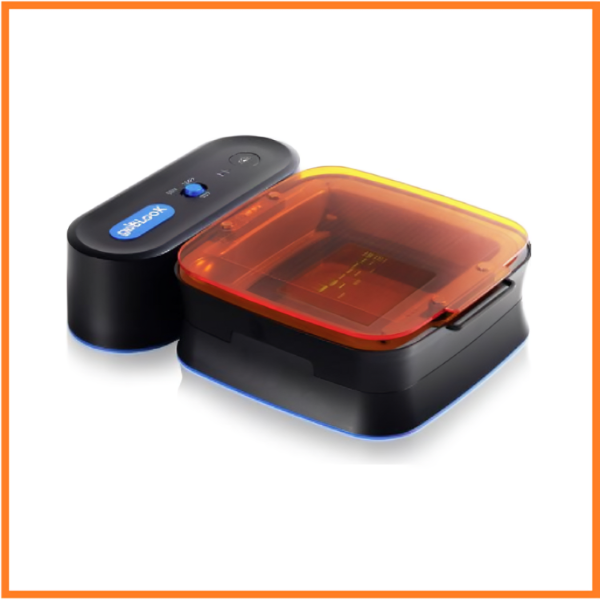

gelBLooK Electrophoresis System
gelBLooK is an instrument that combines the gel electrophoresis system with the blue LED transilluminator, designed for nucleic acid electrophoresis experiments.
Full Specifications
- Entire Set
- Cat. No. BK008-000B
- Overall Dimensions (W x L x H) 193 x 256 x 65 mm (7.6 x 10.1 x 2.6 inch)
- Weight (w/o power cord) 1,000 ± 5g
- Operating Temperature -30 to +70 °C ( -22 to +158 °F )
- Storage Temperature -40 to +85 °C ( -40 to +185 °F )
- Power Supply
- Dimensions (W x L x H) 193 x 93 x 64 mm (7.6 x 3.7 x 2.5 inch)
- Input Voltage AC 100 – 240 V, 47 – 63 Hz
- Output Voltage DC 48 – 110 V
- Electrophoresis Tank
- Amber Filter Dimensions (W x L) 168 x 175 mm (6.6 x 6.9 inch)
- Tank Dimensions (W x L x H) 174 x 181 x 62 mm (6.9 x 7.1 x 2.4 inch)
- Gel Viewing Dimensions (W x L) 115 x 95 mm (4.5 x 3.7 inch)
- Buffer volume 320 mL Max.
- Electrodes Platinum wire
- Blue LED Transilluminator
- Dimension (W x L x H) 174 x 174 x 37 mm (6.9 x 6.9 x 1.5 inch)
- Emission maxima 470 nm
- LED Light Source Built-in blue light LED module
- LED Life > 30,000 hours
